ISO 8638 Medical Luer Fittings and Gages

Alamo Closed Their Doors May 26, 2023


Alamo ISO 8638 Medical Gages and Reference Connectors

Click on picture
for more info.

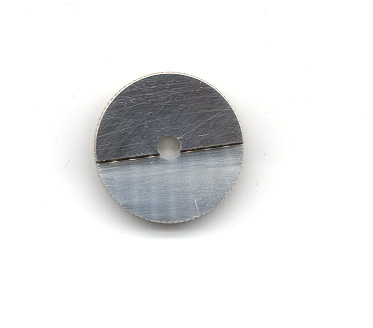

ISO 8638 Fig 3a

No Longer Available

  Ring gage with Handle

Conical Ring Gauge for Male Luer
ISO 8638:2010, Fig 3, page 9 does not include the letters: a; b; c; d; regardless; Figure: 3a is depicted in the upper left of Figure 3.

NOTE:
OD of Ring Gage is 9.7mm (0.380").
.

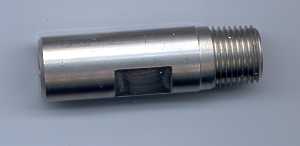

ISO 8638 Fig 3b

No Longer Available

ANSI/HIMA MD70.1

Female Reference Connector
used to test Male Luer Connectors/Fittings;
with 1/8" male NPT connection
ISO 8638:2010, Fig 3, page 9 does not include the letters: a; b; c; d; regardless; Figure: 3b is depicted in the lower left of Figure 3.

NOTE:
OD of Reference Connector is 9.7mm (0.380")
.

ISO 8638 Fig 3c

No Longer Available

ANSI/HIMA MD70.1I1Fig3C.JPG (3722 bytes)

Conical Plug Gauge for Female Luer
ISO 8638:2010, Fig 3, page 9 does not include the letters: a; b; c; d; regardless; Figure: 3c is depicted in the upper right of Figure 3.



ISO 8638 Fig 3d

No Longer Available

ANSI/HIMA MD70.1

Male Reference Connector
used to test Female Luer Connector/Fittings;
with 1/8" male NPT connection
ISO 8638:2010, Fig 3, page 9 does not include the letters: a; b; c; d; regardless; Figure: 3d is depicted in the lower right of Figure 3.
.


Prices listed revised on September 28, 2016 but subject to change without notice.
Lead-Time: 4 to 8 Weeks after receipt of order to shipment
Calibration: Manufacturer's NIST Traceable Long Form Certification at no charge
Calibration: 3rd-Party ISO 17025 Calibration Certificate add US$250/item and 3 weeks to lead-time
Payment Terms: Credit Card (Visa, MasterCard, Discover, American Express)
Freight Terms: Freight Collect to your account, FOB: Shipping Point

Notice:
This website is funded by the sale of screw thread measurement tools. It will help us continue to offer this data if you allow us to have the opportunity to sell our tools to your company. If you find this information useful, please work to get Gage Crib Worldwide Inc. on the bid list for future purchases of screw thread measurement tools.

Disclaimer:
This data is provided for general information only. The intention is to provide accurate information; regardless; errors may exist in the supplied information. If accuracy is critical, base your final decisions on the data provided in the root document: ISO-8638 which is a copyrighted document. To purchase copies visit an Authorized Reseller.

Comments:
Original Posting: 8/29/2004
Last Revision: 12/07/2023
Error corrections in, or comments about, the above data can be sent to: office@gagecrib.com
