ISO 80369-3 Medical Enteral Gages




ISO 80369-3 Medical Enteral Gages

The gages offered here are not required or specified by ISO 80369-3 for product validation.



ISO 80369-3
Conical Ring Gage

US$1,920.00

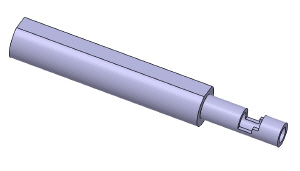

ISO594-1 Fig 3a or 3b ring gage with handle
Video & Pics

Tapered Ring Gauge with Handle
For size testing of male conical fittings.
Medi-Luer # ML27
More Information

Calibration:
Manufacturer's unaccredited Long Form Certification
is included, but for ISO 17025 Calibration Certificate
add US$250 and add 3 weeks to lead-time.


ISO 80369-3
Conical Ring Gage

US$2,590.00



ISO 594/1 Figure 3a or 3b Luer Cone Ring Gauge with 5 Newotn Weight
Video & Pics

5 Newton Weighted Tapered Ring Gage
For size testing of male conical fittings.
Medi-Luer # ML28
More Information

Calibration:
Manufacturer's unaccredited Long Form Certification
is included, but for ISO 17025 Calibration Certificate
add US$250 and add 3 weeks to lead-time.



ISO 80369-3
Conical Plug Gage

US$1,220.00



I1Fig3C
Video & Pics

Tapered Plug Gauge with Handle
For size testing of female conical fittings.
Medi-Luer # ML29
More Information

Calibration:
Manufacturer's unaccredited Long Form Certification
is included, but for ISO 17025 Calibration Certificate
add US$250 and add 3 weeks to lead-time.



ISO 80369-3
Conical Plug Gage

US$2,220.00



I1Fig3C
Video & Pics

5 Newton Weighted Taper Plug Gauge
For size testing of female conical fittings.
Medi-Luer # ML30
More Information

Calibration:
Manufacturer's unaccredited Long Form Certification
is included, but for ISO 17025 Calibration Certificate
add US$250 and add 3 weeks to lead-time.



ISO 80369-3
Thread Plug Gages

US$700.00



GO/NOGO Style Thread Plug Gage for the internal Thread on the male Luer Connector
Video & Pics

ISO 80369-3 GO/NOGO Chrome Fitment Work Plug Gages
For fitment testing of the female screw thread in the collar surrounding the male conical fittings.
Medi-Luer # ML31
More information.

Calibration:
The manufacturer's ISO 17025 Calibration Certificate is included.

NOTES:
1. This GO/NOGO Work Plug Gage will test ISO 80369-3 for Fitment.
2. Both the GO and the NOGO gage members have C'Bore to clear the ISO 80369-3 male cone.
3. Usually gages and reference fittings for ISO 594 are made of Hardened Stainless Steel, but this gage is made of Hardened Tool Steel and all-over coated with Chrome to inhibit rust. This gage should not be sterilized.


ISO 80369-3
Thread Ring Gages

US$2,160.00

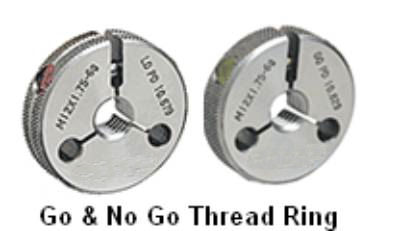

GO/NOGO Style Thread Ring Gages for the external thread of Female Luer Connector
Video & Pics

ISO 80369-3 GO/NOGO Chrome Fitment Thread Ring Gages
For fitment testing of the male screw thread or tabs located on the female conical fittings of all materials.
Medi-Luer # ML32 (and ML33)
More information.

Calibration:
The manufacturer's ISO 17025 Calibration Certificate is included.

NOTES:
1. This GO/NOGO Chrome Fitment Ring Gage will test ISO 80369-3 for Fitment.
2. Usually gages and reference fittings for ISO 594 are made of Hardened Stainless Steel, but this gage is made of Hardened Tool Steel and all-over coated with Chrome to inhibit rust. This gage should not be sterilized.
3. These ML32 GO/NOGO Chrome Fitment Working Ring Gages are supplied with the matching ML33 Master Plug Gages. One set of Master Plug Gages can accommodate many Working Ring Gages.



Prices listed revised on August 7, 2016 but subject to change without notice.
Lead-Time: 4 to 8 Weeks after receipt of order to shipment
Payment Terms: Credit Card (Visa, MasterCard, Discover, American Express)
Freight Terms: Freight Collect to your account, FOB: Shipping Point

Disclaimer:
This data is provided for general information only. The intention is to provide accurate information; regardless; errors may exist in the supplied information. If accuracy is critical, base your final decisions on the data provided in the root document: ISO-800369-3 which is a copyrighted document.
To purchase copies visit an Authorized Reseller.

Comments:
Original Posting: 9/12/2014
Last Revision: 10/16/2017
