Enersol S17 Air Leak Test Machine

ENERSOL S17 AIR LEAK TEST MACHINE for ISO 594

NOTE:
ISO 594 has been rescinded and replaced by ISO 80369-7. Because of the change from ISO 594 into ISO 80369-7; all tests per ISO 594 should now be switched to tests per ISO 80369-7 (ISO 80369-20).

NOTE:
The Enersol Model S17 Air Leak Test Machine was specifically designed for ISO 594. The Enersol Model S17 Air Leak Test Machine has been discontinued and replaced with the Enersol Model S17A Air Leakage Tester. The Enersol Model S17A Air Leakage Tester has been designed specifically for ISO 80369 tests as listed in ISO 80369-20. The Enersol Model S17A Air Leakage Tester is backward compatible to ISO 594.The Enersol Model S17 Air Leak Test Machine can be adapted to work with ISO 80369-20.

NOTE:
Contact us if you own Enersol Model S17 Air Leak Test Machine and wish it converted into the Enersol Model S17A Air Leakage Tester. To accomplish we will work with you to get the Enersol Model S17 Air Leak Test Machine returned Enersol. Enersol will make the appropriate modifications and return the converted device to you. The Enersol Model S17A Air Leakage Tester is backward compatible to ISO 594.

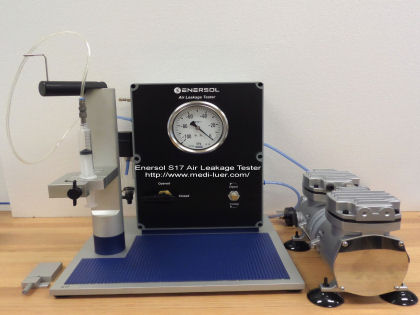

Air Leakage Test Machine
The Enersol Air Leakage Test Machine is designed to be compact and easy to operate. The Air Leakage Test Machine is made from anodized aluminum and plastic components. The Air Leakage Test Machine requires a vacuum pump capable of -100kPa which Enersol typically supplies (110-220V DC). The Air Leakage Test Machine has an integral pressure gauge which comes with a calibration certificate.

The Air Leakage Test Machine is required for leakage and performance tests such as those defined in ISO594-1, ISO594- 2, ISO7886 series (Parts 1-4) ISO8537 and ISO 80369-20. Other standards such as ISO7864 also require the Air Leakage Test Machine by way of requiring components of the test samples to comply with the clauses in ISO594-1 or ISO594-2.

Uses for the Air Leakage Test Machine
Below is a list of tests which are best accomplished by using the Air Leakage Test Machine.

ISO 594/1 Air Leakage Test as defined in paragraph 4.3
To conduct the Air Leakage Test found in ISO 594/1 paragraph 4.3 the following Enersol products are required:
S11 - Male Reference Fitting ISO594/1 Figure 5 and/or
S12 - Female Reference Fitting ISO594/1 Figure 4
S15 - Force/Torque Fitting Assembly Machine
S17 - Air Leakage Test Machine

ISO 594/2 Air Leakage Test as defined in paragraph 4.2.2
To conduct the Air Leakage Test found in ISO 594/2 paragraph 4.2.2 the following Enersol products are required:
S07 - Male Reference Fitting ISO594/2 Figure 5 and/or
S09 - Female Reference Fitting ISO594/2 Figure 7
S15 - Force/Torque Fitting Assembly Machine
S17 - Air Leakage Test Machine

Price List:
ISO 80369-2 Gages
ISO 80369-3 Gages
ISO 80369-6 Gages
ISO 80369-7 Gages
Enersol ISO 80369-2 Reference Connectors
Enersol ISO 80369-3 Reference Connectors
Enersol ISO 80369-6 Reference Connectors
Enersol ISO 80369-7 Reference Connectors
Enersol ISO 594 Reference Connectors
Enersol ISO 80369 Test Machines
Enersol ISO 594 Test Machines

Disclaimer
This data is provided for general information only. The intention is to provide accurate information; regardless; errors may exist in the supplied information. If accuracy is critical, base your final decisions on the data provided in the root documents which are usually copyrighted documents. To purchase a copy of an engineering document visit an Authorized Reseller.

Comments:
Original Posting: 5/11/2013
Last Revision: 7/19/2017
Error corrections in, or comments about, the above data can be sent to: office@gagecrib.com
