ISO-80369-7 Figure C.1 & C.3 Female Reference Connectors



Video Image Viewer




CAD File Link Here.

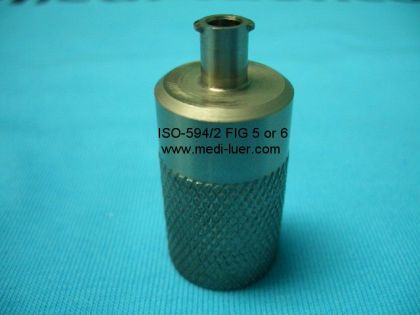

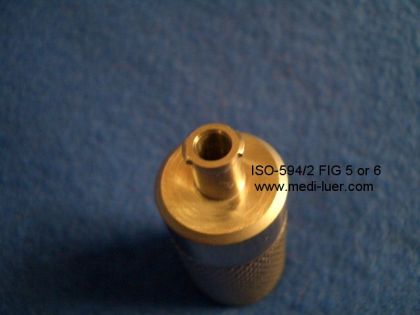

ISO 80369-7 FIGURE C.1 and C.3 FEMALE LUER REFERENCE CONNECTOR

ISO 80369-7:2016 cancels and replaces the first edition ISO 594-1:1986 and the second edition of ISO 594-2:1998, clauses, subclauses, tables, figures, and annexes of which have been consolidated and technically revised. Because of this, ISO 594 connections must be tested per ISO 80369-7 requirements. Read: Discussion on the change.

Compatibility/Interchangeability...

Between ISO 594/2 Fig 5 and ISO 80369-7 Fig C.1
The ISO 594/2 Figure 5 Female Luer Reference Conical Fitting is replaced by ISO 80369-7 Fig C.1 Female Luer Reference Connector. The ISO 80369-7 Figure C.1 is identical to the ISO 594/2 Figure 5 Reference Fitting. ISO 80369-7 Fig C.1 and ISO 594/2 Fig 5 are completely interchangeable. If you request a quote for a new ISO 594/2 Fig 5 Reference Connector from us; we will quote an item which will pass both ISO 594 and ISO 80369-7 requirements. It will be DUO-marked and DUO-certified to both specifications.


Between ISO 594/2 Fig 6 and ISO 80369-7 Fig C.3
The ISO 594/2 Figure 6 Female Luer Reference Conical Fitting is replaced by ISO 80369-7 Fig C.3 Female Luer Reference Connector. The ISO 80369-7 Figure C.3 is identical to the ISO 594/2 Figure 6 Reference Fitting. ISO 80369-7 Fig C.3 and ISO 594/2 Fig 6 are completely interchangeable. If you request a quote for a new ISO 594/2 Fig 6 Reference Connector from us; we will quote an item which will pass both ISO 594 and ISO 80369-7 requirements. It will be DUO-marked and DUO-certified to both specifications.

General Construction Details:
Keeping with the requirements of ISO 80369-7; the Reference Connectors we sell are from hardened stainless steel. They have design details which are not specified in ISO 80369-7 and which allow connection to test equipment. These design details vary by manufacturer so be sure you understand the configuration before you order the Reference Connector. The ISO 80369 Reference Connectors are an integral part of Luer needle and syringe testing.

Uses for...

ISO 80369-7 Fig C.1
The ISO 80369-7 Figure C.1 Female Luer Reference Connectors are used for testing Male Luer Connectors for: Leakage; Separation from unscrewing; Stress cracking; and Non-interconnectable characteristics in the ISO 80369-7; Clause 6 specified tests.
Below is the list of tests which are accomplished by using the ISO 80369-7 Fig C.1 Female Luer Reference Connector:
ISO 80369-7 Clause...
4.1: Non-Interconnectivity
6.1: Fluid Leakage
6.2: Sub-Atmospheric Pressure Air Leakage
6.3: Stress Cracking
6.5: Resistance To Separation From Unscrewing

ISO 80369-7; Page 3; Paragraph 4.1; Non-Interconnectable Characteristics
This test is part of the validation process for new connector designs. Since the connectors in ISO 80369-7 have already been developed you should seldom have to do this test to validate a connector to ISO 80369-7.

ISO 80369-7; Page 4; Paragraph 6.1.2; Liquid Leakage By Pressure Decay
To conduct this Liquid Leakage Test found in ISO 80369-7 clause 6.1.2 the following Enersol products are required:
S07 - Female Luer Reference Connector ISO 80369-7 Fig C.1
S15A - Connector Assembly Device
S77 - Automated Pressure Decay Tester

ISO 80369-7; Page 5; Paragraph 6.1.3; Positive Pressure Liquid Leakage
To conduct this Liquid Leakage Test found in ISO 80369-7 clause 6.1.3 the following Enersol products are required:
S07 - Female Luer Reference Connector ISO 80369-7 Fig C.1
S15A - Force/Torque Fitting Assembly Machine
S16A - Falling Drop Positive Pressure Liquid Leakage Tester

ISO 80369-7; Page 5; Paragraph 6.2; Sub-atmospheric pressure air leakage
To conduct the Air Leakage Test found in ISO 80369-7 clause 6.2 the following Enersol products are required:
S07 - Female Luer Reference Connector ISO 80369-7 Fig C.1
S15A - Force/Torque Fitting Assembly Machine
S17A - Subatmospheric Pressure Air Leakage Tester
or
S78 - Automated Subatmospheric Pressure Air Leakage Tester

ISO 80369-7; Page 5; Paragraph 6.3; Stress Cracking
To conduct the Stress Cracking Test found in ISO 80369-7 clause 6.3 the following Enersol products are required:
S07 - Female Reference Luer Slip Connector ISO 80369-7 Fig C.1
S15A - Force/Torque Fitting Assembly Machine

ISO 80369-7 Page 5; Paragraph 6.5; Resistance To Separation From Unscrewing
To conduct the Resistance To Separation From Unscrewing Test found in ISO 80369-7 clause 6.5 the following Enersol products are required:
S07 - Female Reference Luer Slip Connector ISO 80369-7 Fig C.1
S15A - Force/Torque Fitting Assembly Machine
S19 - Unscrewing Force Test Machine

ISO 80369-7 Fig C.3
The ISO 80369-7 Figure C.3 Female Luer Reference Connectors are used for testing Male Luer Connectors for: Separation from axial load and Resistance to overriding in the ISO 80369-7; Clause 6 specified tests.
Below is the list of tests which are accomplished by using the ISO 80369-7 Fig C.3 Female Luer Reference Connector:
ISO 80369-7 Clause...
6.4: Resistance To Separation From Axial Load
6.6: Resistance To Overriding

ISO 80369-7 Page 5; Paragraph 6.4; Resistance To Separation From Axial Load
To conduct the Resistance To Separation From Unscrewing Test found in ISO 80369-7 clause 6.5 the following Enersol products are required:
S07 - Female Reference Luer Slip Connector ISO 80369-7 Fig C.1
S15A - Force/Torque Fitting Assembly Machine
S19 - Unscrewing Force Test Machine

ISO 80369-7 Page 5; Paragraph 6.6; Resistance To Overriding
To conduct the Resistance To Resistance To Overriding Test found in ISO 80369-7 clause 6.6 the following Enersol products are required:
S07 - Female Reference Luer Slip Connector ISO 80369-7 Fig C.1
S15A - Force/Torque Fitting Assembly Machine

Price List:
Alamo ISO 80369-7 Reference Connectors
Enersol ISO 80369-7 Reference Connectors
Medi-Luer ISO 80369-7 Reference Connectors
Enersol ISO 80369-20 Test Machines


Disclaimer:
This data is provided for general information only. The intention is to provide accurate information; regardless; errors may exist in the supplied information. If accuracy is critical, base your final decisions on the data provided in the root documents: ISO594/1:1986; ISO 594/2:1998, ISO80369-7:2016, and ISO80369-20:2014; which are copyrighted documents.
To purchase copies visit an Authorized Reseller.

Comments:
Original Posting: 3/20/2009
Last Revision: 1/10/2017
Error corrections in, or comments about, the above data can be sent to: gageguy@gagecrib.com
