Enersol Medical Luer Gages ISO-18250-8 Reference Connector

Enersol ISO 18250-8 Medical Luer Reference Connector

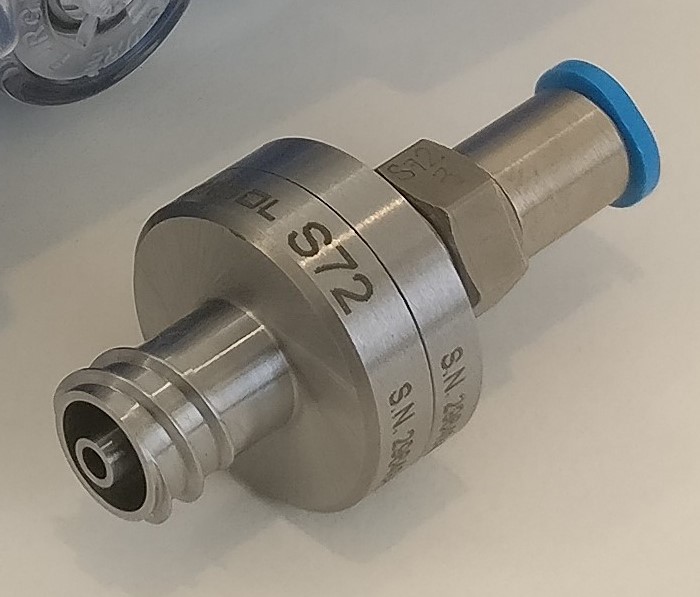

ISO 18250-8 Fig C.1

Please call or email us to request a quote

Male Apheresis Reference Connector
Enersol P/N: S72
for testing male Apheresis Citrate Anticoagulant Connector for:
ISO 18250-8 Clause...
5.2 Positive Pressure Liquid Leakage
5.3 Stress Cracking
5.5: Resistance To Separation From Unscrewing
5.7: Sub-Atmospheric Pressure Air Leakage

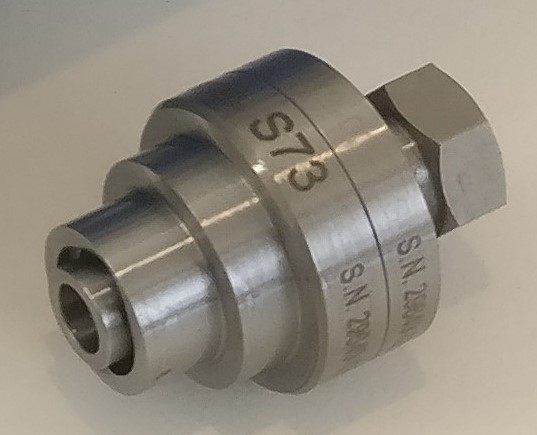

ISO 18250-8 Fig C.2

Please call or email us to request a quote

Female Apheresis AC Reservior Reference Connector
Enersol P/N: S73
ffor testing male Apheresis AC Reservoir Connector for:
ISO 18250-8 Clause...
5.2 Positive Pressure Liquid Leakage
5.3 Stress Cracking
5.5: Resistance To Separation From Unscrewing
5.7: Sub-Atmospheric Pressure Air Leakage

Manufactured per ISO 18250-8 Figure C.2 as an assembly of ISO 18250-8 Fig C.3 and C.4.

ISO 18250-8 Fig C.3

ISO 18250-8 Fig C.4

These two ISO 18250-8 figures are not offered for sale as indifvidual components. They are sub-components of ISO 18250-8 Fig C.2. They are custom fit together to make ISO 18250-8 Fig C.2. They are not interchangable with existing ISO 18250-8 Fig C.2 assembled reference connectors.

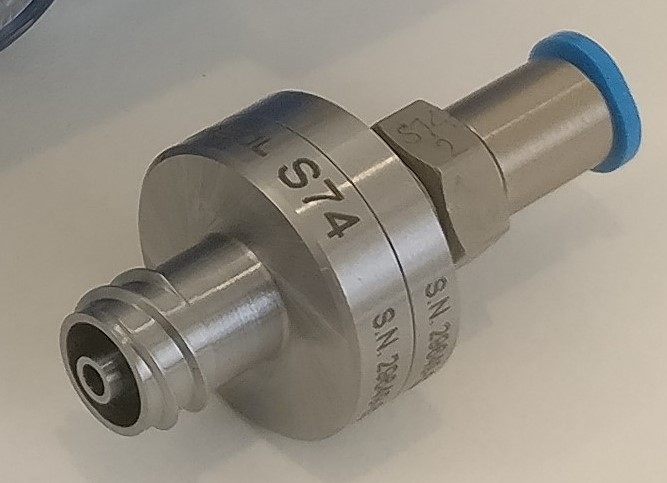

ISO 18250-8 Fig C.5

Please call or email us to request a quote

Male Apheresis AC Reservior Reference Connector
Enersol P/N: S74
for testing female Apheresis AC Reservior Connector for:
ISO 18250-8 Clause...
5.4 Resistance to Seperation from Axial Load
5.6 Rresistance to Overriding

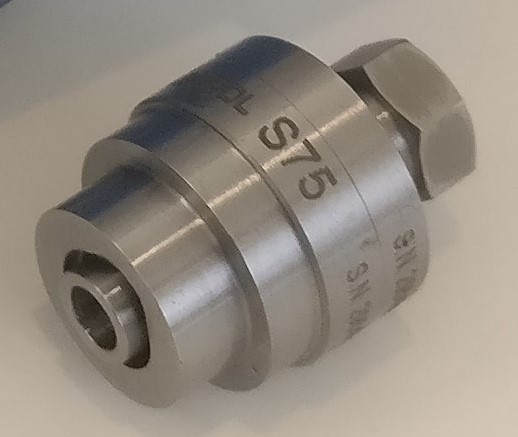

ISO 18250-8 Fig C.6

Please call or email us to request a quote

Female Reference Connector
Enersol P/N: S75
for testing male Apheresis AC Reservior Connector for:
ISO 18250-8 Clause...
5.4 Resistance to Seperation from Axial Load
5.6 Rresistance to Overriding

Manufactured per ISO 18250-8 Figure C.6 as an assembly of ISO 18250-8 Fig C.7 and C.8

ISO 18250-8 Fig C.7

ISO 18250-8 Fig C.8

These two ISO 18250-8 figures are not offered for sale as indifvidual components. They are sub-components of ISO 18250-8 Fig C.6. They are custom fit together to make ISO 18250-8 Fig C.6. They are not interchangable with existing ISO 18250-8 Fig C.6 assembled reference connectors.

Guidance Doucment for above Reference Connectors

Universal Specifics:
Material: Stainless Steel; Hardened to 48HRC min.
Includes Storage Case.
Includes a hex grip area with a M5x0.8-4H internal/female thread.
Includes Festo quick star push-in fittings for fast and easy connection to 4mm hose.
Fast and easy to use with matching Enersol equipment and testers.
Includes 3rd-Party ISO 17025 Calibration Certificate.

Lead-Time: 1 to 10 Weeks* after receipt of order to shipment
* Lead-time varies based upon stock level and current commitments at the time we receive your order.
Payment Terms: Credit Card (Visa, MasterCard, Discover, American Express)
Freight Terms: Freight Collect to your account, FOB: Shipping Point (Australia)

Disclaimer:
This data is provided for general information only. The intention is to provide accurate information; regardless; errors may exist in the supplied information. If accuracy is critical, base your final decisions on the data provided in the root document: ISO18250-8, and ISO80369-20; which are copyrighted documents. To purchase copies visit an Authorized Reseller.

Comments:
Original Posting: 8/12/2018
Last Revision: 4/4/2024
Error corrections in or comments about the above data, or requests for quotes can be sent to: office@gagecrib.com
