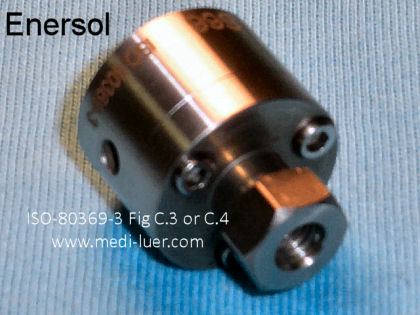

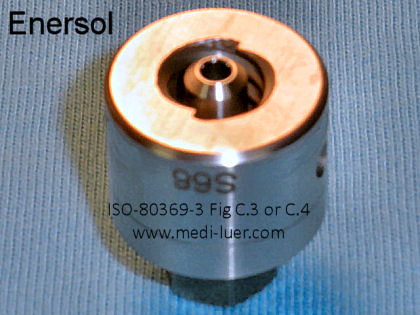

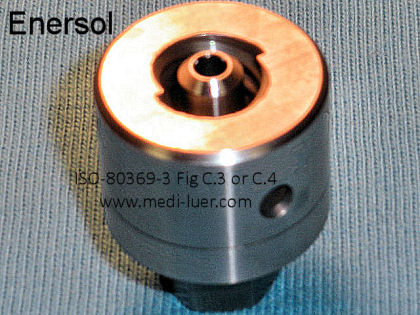

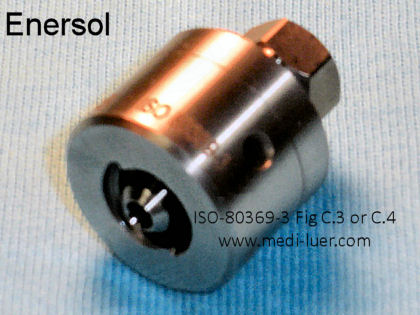

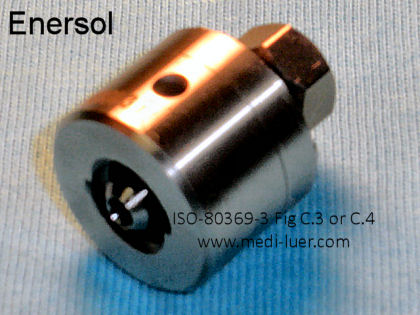

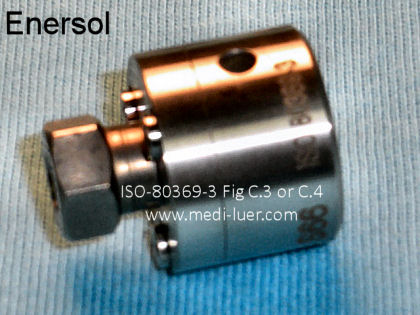

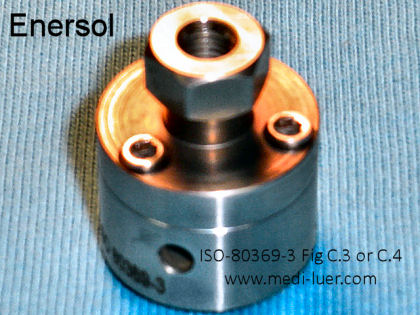

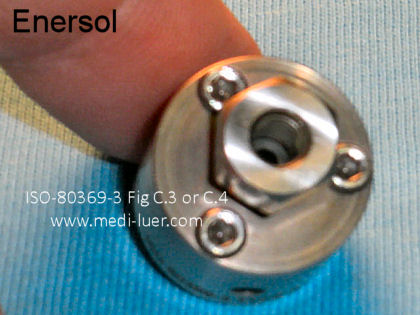

ISO-80369-3 Figure C3 & C4 Female Reference Connectors


Video Image Viewer
Video Coming


COMING in 2016
ISO 80369-7 cancels and replaces the first edition ISO 594-1:1986 and the second edition of ISO 594-2:1998, clauses, subclauses, tables, figures, and annexes of which have been consolidated and technically revised.
Until ISO 80369-7 is finalized we cannot certify or mark gages to ISO 80369-7.

Once ISO 80369-7 is Published
Once ISO 80369-7 is published we will be offering:
- DUO-Marked (ISO-80369-7 and ISO 594) Gages and Reference Connectors
- DUO-Certified (ISO-80369-7 and ISO 594) Gages and Reference Connectors
- DUO-Remarking/DUO-Recertification (ISO-80369-7 and ISO 594) Serivce for existing Gages and Reference Connectors

ISO 594/2 FIGURE 5 AND FIGURE 6 FEMALE REFERENCE FITTINGS

ISO 594/2 Figure 5 and Figure 6 Female Reference Fittings
The ISO 594/2 Figure 5 and Figure 6 Female Reference Conical Fittings are used in the ISO 594/2 specified tests of the ISO 594/2 Luer Male 6% Conical Medical Connectors. Keeping with the requirements of ISO 594/2; the ISO 594/2 Figure 5 and Figure 6 Female Reference Conical Fittings are made from hardened stainless steel.

The ISO 594/2 Figure 5 and Figure 6 Female Reference Conical Fittings have design details which are not specified in ISO 594/2 and which allow connection to test equipment. These design details vary by manufacturer. With the addition of an adapter the various designs will all work with the Enersol Test Equipment; so there is no need to replace existing ISO 594/2 Reference Fittings to utilize the Enersol Test Equipment. The photos above help illuminate these design differences.

The ISO 594/2 Figure 5 and Figure 6 Female Reference Conical Fittings are an integral part of Luer needle and syringe testing and is. The ISO 594/2 Figure 5 and Figure 6 Female Reference Conical Fittings are assembled to samples for tests such as liquid leakage, air leakage, ease of assembly, unscrewing torque, separation force, resistance to overriding, and stress cracking.

Uses for the ISO 594/2 Figure 5 and Figure 6 Female Reference Fittings
Below is a list of tests which are best accomplished by using the ISO 594/2 Figure 5 and Figure 6 Female Reference Fittings.

ISO 594/2 Liquid Leakage Test as defined in paragraph 4.2.1
To conduct the Liquid Leakage Test found in ISO 594/2 paragraph 4.2.1 the following Enersol products are required:
S07 - Male Reference Fitting ISO594/2 Figure 5
S15 - Force/Torque Fitting Assembly Machine
S17 - Liquid Leakage Test Machine

ISO 594/2 Air Leakage Test as defined in paragraph 4.2.2
To conduct the Air Leakage Test found in ISO 594/2 paragraph 4.2.2 the following Enersol products are required:
S07 - Male Reference Fitting ISO594/2 Figure 5
S15 - Force/Torque Fitting Assembly Machine
S17 - Air Leakage Test Machine

ISO 594/2 Separation Force Test as defined in paragraph 4.3
To conduct the Separation Force Test found in ISO 594/2 paragraph 4.3 the following Enersol products are required:
S08 - Male Reference Fitting ISO594/2 Figure 6
S15 - Force/Torque Fitting Assembly Machine
S18 - Separation Force Test Machine

ISO 594/2 Unscrewing Torque Test as defined in paragraph 4.4
To conduct the Unscrewing Torque Test found in ISO 594/2 paragraph 4.4 the following Enersol products are required:
S08 - Male Reference Fitting ISO594/2 Figure 5
S15 - Force/Torque Fitting Assembly Machine
S19 - Unscrewing Force Test Machine

ISO 594/2 Ease of Assembly Test as defined in paragraph 4.5
To conduct the Ease of Assembly Test found in ISO 594/2 paragraph 4.5 the following Enersol products are required:
S07 - Male Reference Fitting ISO594/2 Figure 5
S15 - Force/Torque Fitting Assembly Machine

ISO 594/2 Resistance to Overriding Test as defined in paragraph 4.6
To conduct the Resistance to Overriding Test found in ISO 594/2 paragraph 4.6 the following Enersol products are required:
S08 - Male Reference Fitting ISO594/2 Figure 6
S15 - Force/Torque Fitting Assembly Machine

ISO 594/2 Stress Cracking Test as defined in paragraph 4.7
To conduct the Stress Cracking Test found in ISO 594/2 paragraph 4.7 the following Enersol products are required:
S07 - Male Reference Fitting ISO594/2 Figure 5
S15 - Force/Torque Fitting Assembly Machine
S19 - Unscrewing Force Test Machine

Price List:
Alamo ISO 594/1 Reference Fittings
Medi-Luer ISO 594/1 Reference Fittings
Enersol ISO 594/1 Reference Fittings
Alamo ISO 594/2 Reference Fittings
Enersol ISO 594/2 Reference Fittings
Enersol Test Machines

Disclaimer:
This data is provided for general information only. The intention is to provide accurate information; regardless; errors may exist in the supplied information. If accuracy is critical, base your final decisions on the data provided in the root documents: ISO594/1:1986; ISO 594/2:1998, ISO80369-3:2014, ISO80369-7:2014, and ISO80369-20; which are copyrighted documents.
To purchase copies visit an Authorized Reseller.
