Enersol Medical Luer Gages ISO-18250-3 Reference Connector

Enersol ISO 18250-3 Reference Connector for reservoir delivery systems for healthcare applications — Part 3: Enteral applications

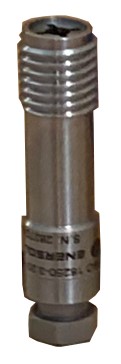

ISO 18250-3 Fig C.1

Please call or email us for quote. Quantity discounts are available.

Video & Pics

Cross Port Reservoir Reference Connector
Enersol P/N: S88
for testing cross connector (E1R) for:
ISO 18250-3 Clause...
6.2: Positive Pressure Liquid Leakage
6.3: Subatmospheric Pressure Air Leakage
6.4: Stress Cracking
6.6: Resistance To Separation From Unscrewing
6.8: Disconnection By Unscrewing

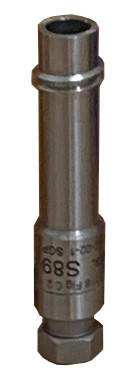

ISO 18250-3 Fig C.2

Please call or email us for quote. Quantity discounts are available.

ISO 80369-3 Fig C.2 Female Reference Connector

Cross Port Reservoir Reference Connector
Enersol P/N: S89
for testing cross connector (E1R) for:
ISO 18250-3 Clause...
6.5: Resistance To Separation From Axial Load
6.7: Resistance To Overriding

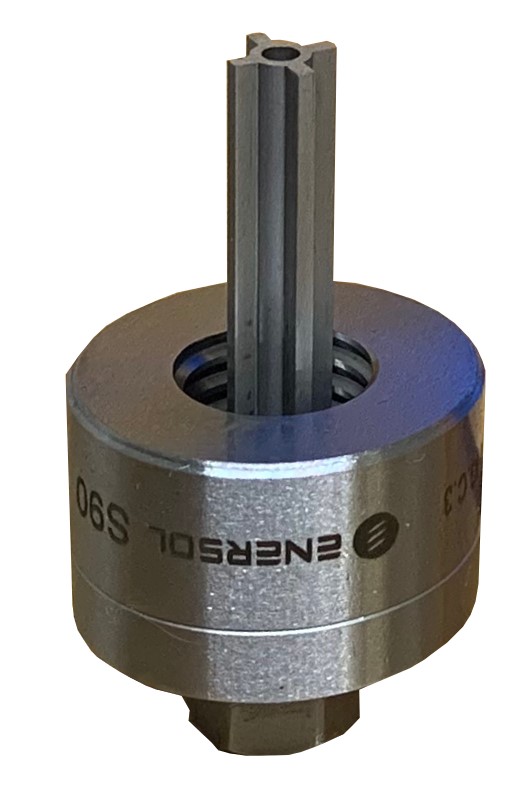

ISO 18250-3 Fig C.3

Please call or email us for quote. Quantity discounts are available.

ISO 80369-3 Fig C.3 Male Reference Connector

Cross Reference Connector
Enersol P/N: S90
for testing cross port reservoir connector (E1R) for:
ISO 18250-3 Clause...
6.2: Positive Pressure Liquid Leakage
6.3: Subatmospheric Pressure Air Leakage
6.4: Stress Cracking
6.6: Resistance To Separation From Unscrewing
6.8: Disconnection By Unscrewing

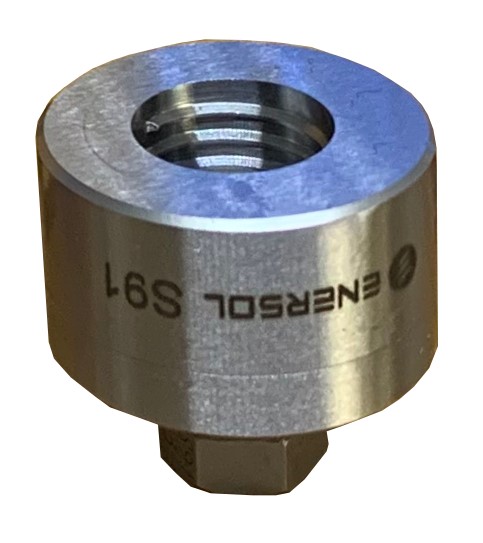

ISO 18250-3 Fig C.4

Please call or email us for quote. Quantity discounts are available.

ISO 80369-3 Fig C.4 Male Reference Connector

Cross Reference Connector
Enersol P/N: S91
for testing cross port reservoir connector (E1R) for:
ISO 18250-3 Clause...
6.5: Resistance To Separation From Axial Load
6.7: Resistance To Overriding

ISO 18250-3 Fig C.5

Please call or email us for quote. Quantity discounts are available.

ISO 80369-3 Fig C.3 Male Reference Connector

Male Reference Connector
Enersol P/N: S92
for testing female enteral reservoir connector (E2R) for:
ISO 18250-3 Clause...
6.2: Positive Pressure Liquid Leakage
6.3: Subatmospheric Pressure Air Leakage
6.4: Stress Cracking
6.5: Resistance To Separation From Axial Load
6.6: Resistance To Separation From Unscrewing
6.7: Resistance To Overriding

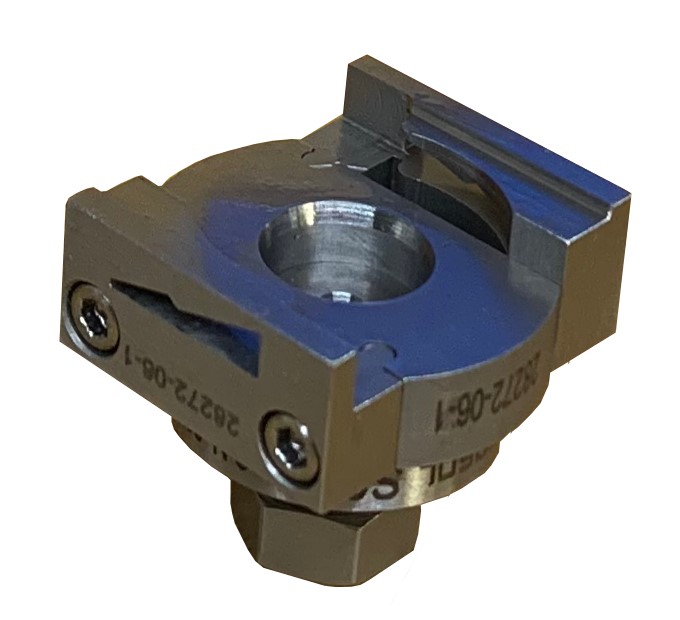

ISO 18250-3 Fig C.6

Please call or email us for quote. Quantity discounts are available.

ISO 80369-3 Fig C.4 Male Reference Connector

Female Reference Connector
Enersol P/N: S93
for testing male enteral reservoir connector (E2R) for:
ISO 18250-3 Clause...
6.2: Positive Pressure Liquid Leakage
6.3: Subatmospheric Pressure Air Leakage
6.4: Stress Cracking
6.5: Resistance To Separation From Axial Load
6.6: Resistance To Separation From Unscrewing
6.7: Resistance To Overriding

Guidance Doucment for above Reference Connectors

Universal Specifics:
Material: Stainless Steel; Hardened to 48HRC min.
Includes Storage Case.
Includes a hex grip area with a M5x0.8-4H internal/female thread.
Includes Festo quick star push-in fittings for fast and easy connection to 4mm hose.
Fast and easy to use with matching Enersol equipment and testers.
Includes 3rd-Party ISO 17025 Calibration Certificate.

Lead-Time: 1 to 10 Weeks* after receipt of order to shipment
* Lead-time varies based upon stock level and current commitments at the time we receive your order.
Payment Terms: Credit Card (Visa, MasterCard, Discover, American Express)
Freight Terms: Freight Collect to your account, FOB: Shipping Point (Australia)
Please call or email us to reqest a quote.

Disclaimer:
This data is provided for general information only. The intention is to provide accurate information; regardless; errors may exist in the supplied information. If accuracy is critical, base your final decisions on the data provided in the root document: ISO18250-3, and ISO80369-20; which are copyrighted documents. To purchase copies visit an Authorized Reseller.
