ASTM F 1054 Anaesthetic and Respiratory Conical Connector Gages

ASTM F1054-01: Standard Specification for Conical Fittings has been withdrawn by the ASTM as of May 2005. The specification was fully replaced by ISO5356-1. All of the gages are identical between the two standards except the 30mm plug and ring test gages for conical connectors made of materials other than metal. To assure product interconnectivity you should only purchase ISO5356-1 gages.

Click on picture
for full image.

ASTM F 1054 Fig A1.1

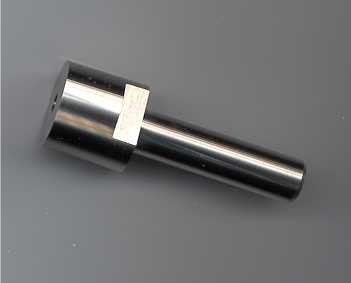

15mm Plug Gage
replace with ISO5356-1 Fig A.1

Plug test gauges for conical connectors made of materials other than metal.

ASTM F 1054 Fig A1.1
15mm Ring Gage
replace with ISO5356-1 Fig A.1

Ring test gauges for conical connectors made of materials other than metal.

ASTM F 1054 Fig A1.1
22mm Plug Gage
replace with ISO5356-1 Fig A.1

Plug test gauges for conical connectors made of materials other than metal.

ASTM F 1054 Fig A1.1
22mm Ring Gage
replace with ISO5356-1 Fig A.1

Ring test gauges for conical connectors made of materials other than metal.

ASTM F 1054 Fig A1.1
30mm Plug Gage US$4,000.00
replace with ISO5356-1 Fig A.1

Plug test gauges for conical connectors made of materials other than metal.

ASTM F 1054 Fig A1.1
30mm Ring Gage US$4,000.00
replace with ISO5356-1 Fig A.1

Ring test gauges for conical connectors made of materials other than metal.

ASTM F 1054 Fig A5.1
15mm Plug Gage
replace with ISO5356-1 Fig E.1

Plug test gauges for conical connectors made of metal.

ASTM F 1054 Fig A5.1
15mm Ring Gage
replace with ISO5356-1 Fig E.1

Ring test gauges for conical connectors made metal.

ASTM F 1054 Fig A5.1
22mm Plug Gage
replace with ISO5356-1 Fig E.1

Plug test gauges for conical connectors made of metal.

ASTM F 1054 Fig A5.1
22mm Ring Gage
replace with ISO5356-1 Fig E.1

Ring test gauges for conical connectors made metal.

ASTM F 1054 Fig A5.1
30mm Plug Gage
replace with ISO5356-1 Fig E.1

Plug test gauges for conical connectors made of metal.

ASTM F 1054 Fig A5.1
30mm Ring Gage
replace with ISO5356-1 Fig E.1

Ring test gauges for conical connectors made metal.
